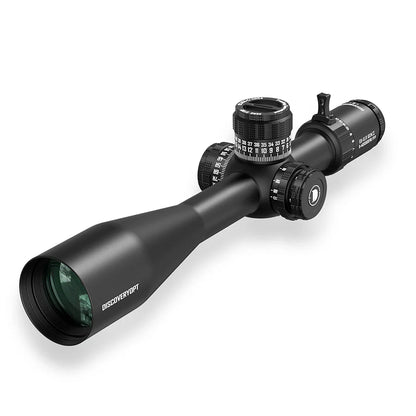

ED-ELR GEN II 5-40X56SFIR FFP-MRAD/MOA-Z Diameter:35MM Optics Scope
ED-ELR GEN II 5-40X56SFIR FFP-MRAD/MOA-Z Diameter:35MM Optics Scope
Shipping from China
Shipping from China
- Delivery in 15-20 days
Warranty Policy
Warranty Policy
- Lifetime Warranty: Applies to XED, ED, HD, and LHD series products.
- 3-Year Warranty: Applies to HT, HS, WG, MS series products, and thermal imaging devices.
- Accessories: Are excluded from warranty coverage. However, we offer free returns within 30 days of purchase.
About tax exemption
About tax exemption
- Regarding shipments originating from China:
- Packages exceeding 2kg in weight will incur customs duties.
- Packages weighing less than 2kg are exempt from customs duties.
30-day guaranteed returns and exchanges
30-day guaranteed returns and exchanges
- Our return and exchange policy allows for free returns and exchanges within 30 days of purchase. Following this 30-day period, returns and exchanges will no longer be provided without charge.
Impossible de charger la disponibilité du service de retrait
Key Features
Optical Performance
-
ED (Extra-low Dispersion) Glass: Utilizes Japanese ED glass technology to significantly reduce chromatic aberration, enhancing image clarity and color reproduction, particularly suitable for extreme long-distance observations.
-
First Focal Plane (FFP) Reticle: Scales with magnification for consistent ranging and ballistic correction accuracy across all magnification levels.
-
Full Multi-Coating: Enhances light transmission (transmittance ≥92%), ensuring a bright field of view in low-light conditions.
Structure and Functionality
-
35mm Large Diameter Tube: Provides increased internal adjustment space and stability, enhancing shock resistance for high-recoil environments.
-
Zero Stop Function: Allows quick return to a preset zero position, ideal for rapid adjustments in competitive or tactical scenarios.
-
High-Precision Adjustment Knobs:
- MRAD Model: 0.1 MRAD per click (1/10 MRAD), 24 MRAD elevation adjustment range, 17 MRAD windage adjustment range.
-
Shockproof and Waterproof: Nitrogen-filled for waterproof and fog-proof performance, with shock resistance up to 1500G, suitable for harsh conditions.
Reticle and Illumination
-
MRAD Reticle: Ideal for competitive shooters and tactical users, supporting precise ballistic correction.
-
Red Illuminated Reticle: 6 brightness levels (including ultra-low light setting), powered by a CR2032 battery, with convenient side-mounted knob operation.
Compatible Calibers and Scenarios
-
Recommended Calibers: Designed for high-precision long-distance shooting, suitable for medium to large caliber rifles like .308 Winchester, .300 Win Mag, .338 Lapua, especially for platforms requiring high magnification and ballistic correction capabilities.
-
Applications:
- Extreme Long-Range Shooting: Target competitions, long-range hunting (e.g., North American big game), and military/law enforcement sniper missions.
- Dynamic Tactical Environments: Zero stop and high shock resistance design suitable for fast target switching in tactical scenarios.
- Challenging Climate Conditions: Waterproof and fog-proof performance ensures reliability in rainy, snowy, or humid environments.
Detailed Specifications
| Category | Parameter |
|---|---|
| Magnification | 5-40x (continuous zoom) |
| Objective Diameter | 56mm |
| Tube Diameter | 35mm |
| Reticle Type | FFP (First Focal Plane), MRAD scale |
| Adjustment Accuracy | 0.1 MRAD per click (1/10 MRAD) |
| Adjustment Range | 24 MRAD elevation, 17 MRAD windage |
| Field of View | 23.4 ft @ 100 yards at 5x, 2.9 ft @ 100 yards at 40x |
| Eye Relief | 3.5-3.6 inches (8.9-9.1cm) |
| Weight | 1279g (45.1 oz) |
| Length | 423mm (16.7 inches) |
| Material | Aerospace-grade aluminum (T-6061), CNC machined, hard anodized finish |
Advantages Compared to Other Models
- Ultra-High Magnification Range: 5-40x zoom range caters to diverse needs from short to extremely long distances.
- Ultimate Optical Performance: ED glass technology significantly enhances image quality, ideal for extreme long-distance observations.
- High-Precision Adjustments: 0.1 MRAD per click provides extremely high adjustment accuracy, suitable for professional shooters.
